General info on port forwarding can be found below. Basically, you need to setup an external URL that points to your Printsmith Vision local machine's IP address. Please keep in mind that ShipLeap does not offer this service. This article is for reference only. Please contact a professional IT company if you don't have the technical knowledge to set this up yourself.
------------------
Here’s a great video that explains the basics of port forwarding:
If you have a router at home or at your office and you wish to reach a device on the network, you will need to forward ports in order for outside traffic to get into your network. Think of your router as being a huge electric fence or wall, with a few doors or openings. This electric fence or wall serves as your barrier and security blanket from the scary outside Internet world. Your router comes pre-configured with a few of those doors (or ports) open to let you access the internet, but the others are closed tight. So, in order to run a mail server, game server, access your computer remotely, etc. you will need to open an extra door or two in your router in order for the outside traffic to get inside. This is called Port Forwarding and the general steps provided here can guide you in configuration.
Please note that port forwarding is not a feature provided by No-IP.com and our support team can not guide you on this. The following guide was created to point you in the general direction. If you require further support than this, you may need to reach out to your router manufacturer or internet service provider.
Step 1: Login to your router via the default gateway address.
Step 2: Enter the credentials for your router on its login page.
Please Note: The credentials for your router should be found on a sticker located underneath or behind your router. If not, you can try the most common credentials below.
Device Username Password
D-Link admin (leave blank)
Netgear admin password
Linksys admin admin
Asus admin admin
DrayTek admin admin
ZyXel admin 1234
TP-Link admin admin
TRENDnet admin admin
Belkin admin (leave blank)
Step 3: Next, locate the port forwarding settings. Typically this will be under Advanced and then Port Forwarding or Virtual Server.
Step 4: On the Port Forwarding page, you will be prompted to enter in a custom name for your device, usually the device you’re trying to reach like a security camera or NVR. Then you’ll enter the desired port you are forwarding in the port field. Select “TCP/UDP” under Protocol or “Both” if you are unsure of which protocol you are using. Next, enter the internal IP address of the device you are port forwarding to and click “Apply” or “Save” to store the changes.
Step 5: Finally, check to see if the port is open by going to www.portchecktool.com. Enter the port number you have forwarded and click Check Your Port. If the port is open, a report should come back stating so.
You should now be able to connect to your device via a web browser. Simply enter your hostname followed by the port number into the address bar. For example http://hostname.ddns.net:8000.
Please Note: If you are using a mobile application, you will need to use just your hostname to connect. The application should already specify the port when attempting to connect.

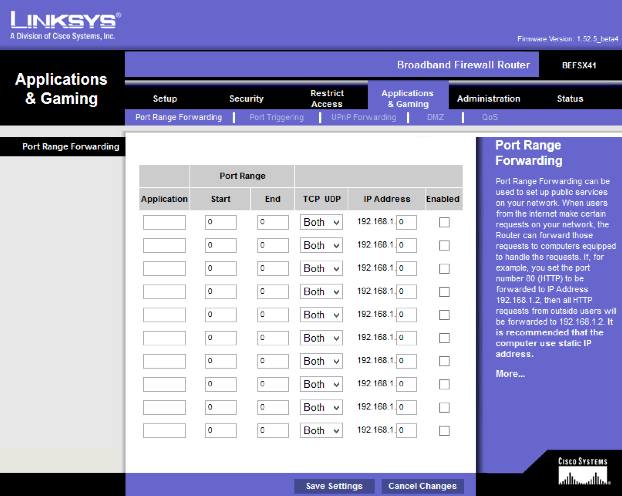

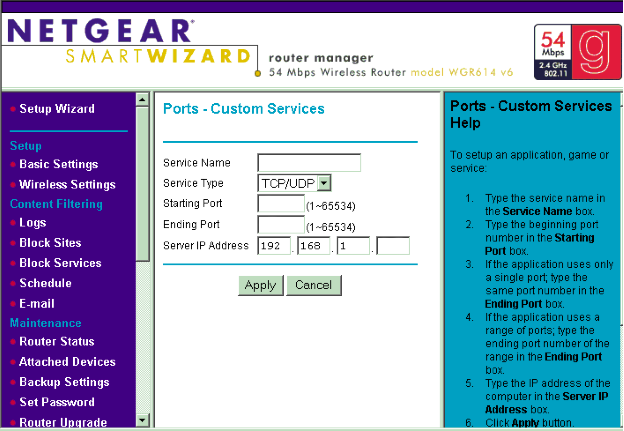

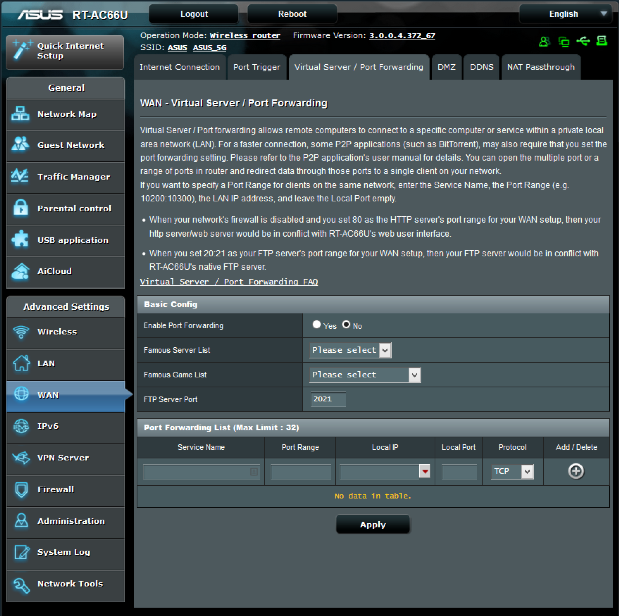

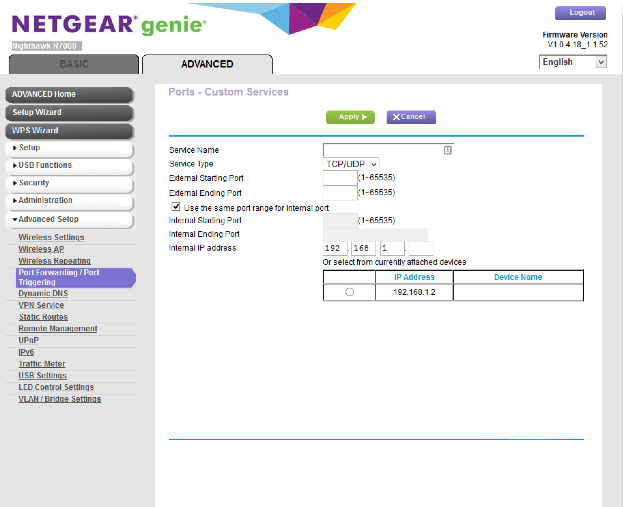

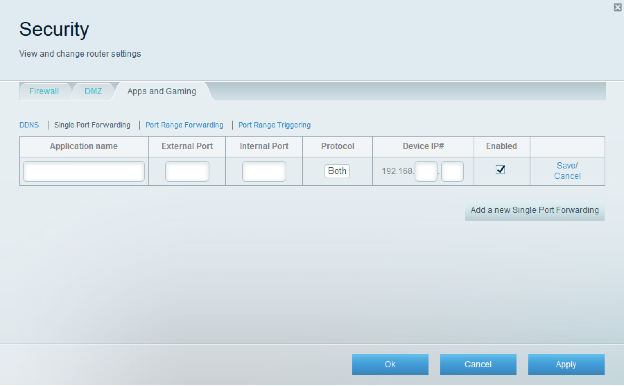

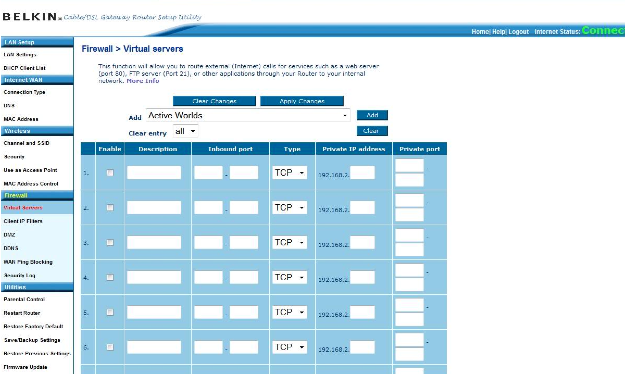

Below you will see interfaces from the 4 most popular manufacturers. Be aware that your router may display a different interface. If you have any questions or are unsure what to do, we recommend finding a guide that provides more information.
